Let's create a Tree-sitter grammar ★

Missing features

But I told you it wasn’t supposed to be this easy, and there are features missing from our parser. Most notably:

1. There can be an arbitrary number of :, allowing divs to be nested.
2. Closing a div should close other open blocks (divs and paragraphs in our case).

In essence, we need to be able to parse this:

:::
Top-level div

::::
A paragraph inside a second div,
both closed when the top-level div is closedj
:::

This is… Complicated.

Sure, we can work around the varying levels of : with something hacky like enumerating the number of colons, using something like this:

div: ($) => choice($._div3, $._div4, $._div5, $._div6, $._div7, $._div8),
_div3: ($) => seq(/:{3}/, $._inside_div, /:{3}/, "\n"),
_div4: ($) => seq(/:{4}/, $._inside_div, /:{4}/, "\n"),
_div5: ($) => seq(/:{5}/, $._inside_div, /:{5}/, "\n"),
_div6: ($) => seq(/:{6}/, $._inside_div, /:{6}/, "\n"),
_div7: ($) => seq(/:{7}/, $._inside_div, /:{7}/, "\n"),
_div8: ($) => seq(/:{8}/, $._inside_div, /:{8}/, "\n"),
_inside_div: ($) => prec.left("\n", repeat($._block)),

But it’s not neat, and automatically closing contained blocks is much harder (to my brain it seems impossible, but I’m no expert).

With an external scanner we can do this (and more).

Div markers closes open paragraphs

Let’s start by closing a paragraph early when a ::: is encountered. This is simpler because we can solve this without storing any state.

When parsing $.paragraph we’ll give the parser a choice between ending the paragraph on a newline or on our new $._close_paragraph token:

paragraph: ($) =>
  seq(repeat1(seq($._inline, "\n")), choice("\n", $._close_paragraph)),

$._close_paragraph is handled by the external scanner, which is specified using the externals field:

externals: ($) => [$._close_paragraph],

Now let’s turn our attention to src/scanner.c. The tokens in externals gets assigned an incremented number, starting from 0… Just like an enum in C!

// We only have a single element right now, but keep in mind that the order
// must match the `externals` array in `grammar.js`.
typedef enum { CLOSE_PARAGRAPH } TokenType;

The five functions we need to implement are these:

// You should replace `sdjot` with whatever project name you chose.
bool tree_sitter_sdjot_external_scanner_scan(void *payload, TSLexer *lexer,
                                             const bool *valid_symbols) {
  // All the scanning goes here.
  return false;
}

// If we need to allocate/deallocate state, we do it in these functions.
void *tree_sitter_sdjot_external_scanner_create() { return NULL; }
void tree_sitter_sdjot_external_scanner_destroy(void *payload) {}

// If we have state, we should load and save it in these functions.
unsigned tree_sitter_sdjot_external_scanner_serialize(void *payload,
                                                      char *buffer) {
  return 0;
}
void tree_sitter_sdjot_external_scanner_deserialize(void *payload, char *buffer,
                                                    unsigned length) {}

Because we won’t use any state, we’ll only have to update the scan function.

What you’re supposed to do is check valid_symbols for the tokens we can return at any point in time, and return true if any was found:

bool tree_sitter_sdjot_external_scanner_scan(void *payload, TSLexer *lexer,
                                             const bool *valid_symbols) {
  if (valid_symbols[CLOSE_PARAGRAPH] && parse_close_paragraph(lexer)) {
    return true;
  }
  return false;
}

To decide if we’re going to close the paragraph early, we’ll look ahead for any :::, and if so we’ll close it without consuming any characters. This might not be the most efficient solution because we’ll have to parse the ::: again, but it gets the job done.

The matched token should be stored in lexer->result_symbol:

static bool parse_close_paragraph(TSLexer *lexer) {
  // Mark the end before advancing so that the CLOSE_PARAGRAPH token doesn't
  // consume any characters.
  lexer->mark_end(lexer);

  uint8_t colons = consume_chars(lexer, ':');
  if (colons >= 3) {
    lexer->result_symbol = CLOSE_PARAGRAPH;
    return true;
  } else {
    return false;
  }
}

Note that the resulting token will mark any symbol we advance over as owned by that token. So ::: would be marked as _close_paragraph (which will be ignored by the output since it begins with an underscore), instead of div_marker. To prevent this, we turn _close_paragraph into a zero-width token by marking the end before advancing the lexer.

How do we advance the lexer? We call lexer->advance:

static uint8_t consume_chars(TSLexer *lexer, char c) {
  uint8_t count = 0;
  while (lexer->lookahead == c) {
    lexer->advance(lexer, false);
    ++count;
  }
  return count;
}

This is almost all we can do with the lexer. We only process one character at a time, cannot look behind, and our only tool to look ahead is to mark_end at the correct place. (We can also query the current column position.)

With this we have a working external scanner and div tags now close paragraphs:

:::
A paragraph inside a div
:::

$ tree-sitter parse example-file
(document [0, 0] - [4, 0]
  (div [0, 0] - [3, 0]
    (div_marker [0, 0] - [0, 3])
    (paragraph [1, 0] - [2, 0])
    (div_marker [2, 0] - [2, 3])))

Nested blocks

To automatically close other open blocks we need to add some context to our parser, which means we’ll need state management.

The small subset we’re implementing is only concerned with closing divs—because it would be a terribly long post otherwise—but I’ll try to implement this in a general manner, to be more indicative of a real-world parser.

Our strategy is this:

1. A div can have a varying number of : that must match.

   Therefore we’ll parse colons in an external scanner and store it on a stack.

2. When we find a div marker, we’ll need to decide if it should start a new div, or close an existing one.

   We’ll look at the stack of open blocks and see if we find a match.

3. If we have need to close a nested div, that is if we want to close a div further down the stack, we need to close the nested div(s) first.

   Thus we’ll introduce a block_close marker that ends a div, and leave the ending div marker as optional.

First we’ll ask the grammar to let the external scanner manage the begin and end tokens. We’ll use a _block_close marker to end the div, and leave the end marker optional. (You could probably use a choice() between the two, but this made more sense to me when I was implementing it.)

div: ($) =>
  prec.left(
    seq(
      // A rule starting with "_" will be hidden in the output,
      // and we can use "alias" to rename rules.
      alias($._div_marker_begin, $.div_marker),
      "\n",
      repeat($._block),
      $._block_close,
      optional(alias($._div_marker_end, $.div_marker))
    )
  ),

externals: ($) => [
  $._close_paragraph,
  $._block_close,
  $._div_marker_begin,
  $._div_marker_end,

  // This is used in the scanner internally,
  // but shouldn't be used by the grammar.
  $._ignored,
],

And remember to update the list of external tokens in the scanner (order matters):

typedef enum {
  CLOSE_PARAGRAPH,
  BLOCK_CLOSE,
  DIV_MARKER_BEGIN,
  DIV_MARKER_END,
  IGNORED
} TokenType;

Then to our stack of blocks.

I used a Block type to keep track of the type and number of colons:

// In a real implementation we'll have more block types.
typedef enum { DIV } BlockType;

typedef struct {
  BlockType type;
  uint8_t level;
} Block;

I know that level isn’t the best name, but I couldn’t find a very good general name for the number of colons, indentation level, etc. With sum types you could model it in a clearer way, like this:

enum Block {
    Div { colons: u32 },
    Footnote { indent: u32 },
    // etc
}

I will, in fact, claim that the difference between a bad programmer and a good one is whether he considers his code or his data structures more important. Bad programmers worry about the code. Good programmers worry about data structures and their relationships.

But I digress, I’ll go with level like a bad programmer.

Another joy of programming C is that you’ll get to re-implement standard data structures such as a growable stack. It’s not truly difficult, but it’s annoying and bug-prone.

Luckily, during the time I’m writing this blog post, tree-sitter 0.22.1 was released with an array implementation. So now I don’t have to show you my shoddy stack implementation, and we can use their array for our stack instead.

We’ll shove our Array of Block* into a Scanner struct, because we’ll need to track more data later:

#include "tree_sitter/array.h"

typedef struct {
  Array(Block *) * open_blocks;
} Scanner;

When you manage state in tree-sitter, you need to do some data management in the tree_sitter_ functions we defined earlier.

Allocations are managed in the _create and _destroy functions. Also new for 0.22.1 is the recommendation to use ts_ functions for allocations, to allow consumers to override the default allocator:

#include "tree_sitter/alloc.h"

void *tree_sitter_sdjot_external_scanner_create() {
  Scanner *s = (Scanner *)ts_malloc(sizeof(Scanner));

  // This is how you create an empty array
  s->open_blocks = ts_malloc(sizeof(Array(Block *)));
  array_init(s->open_blocks);

  return s;
}

void tree_sitter_sdjot_external_scanner_destroy(void *payload) {
  Scanner *s = (Scanner *)payload;

  // I haven't shown the allocation of the blocks yet,
  // but keep in mind that `array_delete` does not deallocate any memory
  // you store in the array itself.
  for (size_t i = 0; i < s->open_blocks->size; ++i) {
    // I use `array_get` even though you can index the contents directly.
    ts_free(array_get(s->open_blocks, i));
  }

  // The array is a growable one, `array_delete` ensures that the
  // memory is deleted.
  array_delete(s->open_blocks);

  ts_free(s);
}

I allocate the blocks in a push_block helper:

static void push_block(Scanner *s, BlockType type, uint8_t level) {
  Block *b = ts_malloc(sizeof(Block));
  b->type = type;
  b->level = level;

  // Grows the stack automatically.
  array_push(s->open_blocks, b);
}

You also need to define the serialize functions. These store and retrieve the managed state, to allow tree-sitter to backtrack.

unsigned tree_sitter_sdjot_external_scanner_serialize(void *payload,
                                                      char *buffer) {
  Scanner *s = (Scanner *)payload;
  unsigned size = 0;
  for (size_t i = 0; i < s->open_blocks->size; ++i) {
    Block *b = *array_get(s->open_blocks, i);
    buffer[size++] = (char)b->type;
    buffer[size++] = (char)b->level;
  }
  return size;
}

void tree_sitter_sdjot_external_scanner_deserialize(void *payload, char *buffer,
                                                    unsigned length) {
  Scanner *s = (Scanner *)payload;
  array_init(s->open_blocks);
  size_t size = 0;
  while (size < length) {
    BlockType type = (BlockType)buffer[size++];
    uint8_t level = (uint8_t)buffer[size++];
    push_block(s, type, level);
  }
}

And that’s the (initial) state management taken care of!

Div markers

Of course, we haven’t used our state yet. Let’s change that.

First, let’s add the parse_div entry point to our scan function:

bool tree_sitter_sdjot_external_scanner_scan(void *payload, TSLexer *lexer,
                                             const bool *valid_symbols) {
  Scanner *s = (Scanner *)payload;

  // Paragraph needs to be closed before we try to close divs.
  if (valid_symbols[CLOSE_PARAGRAPH] && parse_close_paragraph(lexer)) {
    return true;
  }

  // Check `valid_symbols` inside `parse_div` because of multiple valid symbols.
  if (parse_div(s, lexer, valid_symbols)) {
    return true;
  }

  return false;
}

Because advancing the lexer is primitive, and we cannot “go back a char”, it’s important to only advance it if we really need to. Therefore we always need to check valid_symbols before we continue:

static bool parse_div(Scanner *s, TSLexer *lexer, const bool *valid_symbols) {
  if (!valid_symbols[DIV_MARKER_BEGIN] && !valid_symbols[DIV_MARKER_END]) {
    return false;
  }

  // ...
}

Next we’ll need to consume all colons we’re at, and only continue if we see at least three:

static uint8_t consume_chars(TSLexer *lexer, char c) {
  uint8_t count = 0;
  while (lexer->lookahead == c) {
    lexer->advance(lexer, false);
    ++count;
  }
  return count;
}

static bool parse_div(Scanner *s, TSLexer *lexer, const bool *valid_symbols) {
  // ...

  uint8_t colons = consume_chars(lexer, ':');
  if (colons < 3) {
    return false;
  }

  // ...
}

Opening a new div is simple; we push the block and register the number of colons:

push_block(s, DIV, colons);
lexer->result_symbol = DIV_MARKER_BEGIN;
return true;

But to the decide if we should open or close a div, we need a way to search through the stack. This function does that, while also returning how many blocks deep into the stack we found the div (which we’ll use shortly):

// How many blocks from the top of the stack can we find a matching block?
// If it's directly on the top, returns 1.
// If it cannot be found, returns 0.
static size_t number_of_blocks_from_top(Scanner *s, BlockType type,
                                        uint8_t level) {
  for (int i = s->open_blocks->size - 1; i >= 0; --i) {
    Block *b = *array_get(s->open_blocks, i);
    if (b->type == type && b->level == level) {
      return s->open_blocks->size - i;
    }
  }
  return 0;
}

static bool parse_div(Scanner *s, TSLexer *lexer, const bool *valid_symbols) {
  // ...

  size_t from_top = number_of_blocks_from_top(s, DIV, colons);

  // We could check if either DIV_MARKER_BEGIN or DIV_MARKER_END are valid here,
  // but as the grammar is set up they're both always valid at the same time.
  if (from_top > 0) {
    // Close the current div, and all blocks above.
  } else {
    // No matching div to close, let's open one.
    lexer->mark_end(lexer);
    push_block(s, DIV, colons);
    lexer->result_symbol = DIV_MARKER_BEGIN;
    return true;
  }
}

But we have a problem: when we want to close the div, we want to be able to output multiple tokens.

For example, with this type of input:

:::
:::::
:::::::
text
:::

We’ll have a stack of 3 divs when we see the closing ::: marker:

7 (top)
5
3 (the one we want to close)

In the code above, from_top will be 3 and we need to output 4 tokens: 3 BLOCK_CLOSE (one for each div) and 1 DIV_MARKER_END (for the last :::). But the scanner can only output a single token at a time.

The way I solved this is by introducing more state to the Scanner. Specifically, I introduced a blocks_to_close variable that we’ll use to output BLOCK_CLOSE, and some variables to output (and consume) the DIV_MARKER_END.

typedef struct {
  Array(Block *) * open_blocks;

  // How many BLOCK_CLOSE we should output right now?
  uint8_t blocks_to_close;

  // Delayed output of a token.
  TokenType delayed_token;
  // Allows us to consume the width of a delayed token.
  uint8_t delayed_token_width;
} Scanner;

We need to remember to update the create and serialize functions too.

Serialize:

buffer[size++] = (char)s->blocks_to_close;
buffer[size++] = (char)s->delayed_token;
buffer[size++] = (char)s->delayed_token_width;

Deserialize:

s->blocks_to_close = (uint8_t)buffer[size++];
s->delayed_token = (TokenType)buffer[size++];
s->delayed_token_width = (uint8_t)buffer[size++];

We’ll use IGNORED as the unused token, so we’ll need to reset it when we create the scanner:

s->blocks_to_close = 0;
s->delayed_token = IGNORED;

Now when we scan we should first check blocks_to_close and then delayed_token, before we scan other things:

bool tree_sitter_sdjot_external_scanner_scan(void *payload, TSLexer *lexer,
                                             const bool *valid_symbols) {
  Scanner *s = (Scanner *)payload;

  if (valid_symbols[BLOCK_CLOSE] && handle_blocks_to_close(s, lexer)) {
    return true;
  }

  if (output_delayed_token(s, lexer, valid_symbols)) {
    return true;
  }

  // Scan the other stuff
}

When we see blocks_to_close > 0, we should output a BLOCK_CLOSE and remove the top block (with some sanity checks for good measure):

static void remove_block(Scanner *s) {
  if (s->open_blocks->size > 0) {
    ts_free(array_pop(s->open_blocks));
    if (s->blocks_to_close > 0) {
      --s->blocks_to_close;
    }
  }
}

static bool handle_blocks_to_close(Scanner *s, TSLexer *lexer) {
  if (s->open_blocks->size == 0) {
    return false;
  }

  // If we reach eof with open blocks, we should close them all.
  if (lexer->eof(lexer) || s->blocks_to_close > 0) {
    lexer->result_symbol = BLOCK_CLOSE;
    remove_block(s);
    return true;
  }
  return false;
}

With this we can output multiple BLOCK_CLOSE, and now to handle delayed tokens:

static bool output_delayed_token(Scanner *s, TSLexer *lexer,
                          const bool *valid_symbols) {
  if (s->delayed_token == IGNORED || !valid_symbols[s->delayed_token]) {
    return false;
  }

  lexer->result_symbol = s->delayed_token;
  s->delayed_token = IGNORED;
  // With `delayed_token_width` we can consume the ending `:::`, for example.
  while (s->delayed_token_width--) {
    lexer->advance(lexer, false);
  }
  lexer->mark_end(lexer);
  return true;
}

Another way to design this is to have a stack of delayed tokens and then just pop that. It’s certainly more powerful, I just happened to choose this way when I was playing around with it because it’s more explicit and it felt a little easier to follow what was happening.

Either way, we can now implement the div end handling. In parse_div:

size_t from_top = number_of_blocks_from_top(s, DIV, colons);

if (from_top > 0) {
  // Found a div we should close.
  close_blocks_with_final_token(s, lexer, from_top, DIV_MARKER_END, colons);
  return true;
} else {
  lexer->mark_end(lexer);
  push_block(s, DIV, colons);
  lexer->result_symbol = DIV_MARKER_BEGIN;
  return true;
}

close_blocks_with_final_token is a general helper that sets up the number of blocks to close and the final token:

static void close_blocks_with_final_token(Scanner *s, TSLexer *lexer,
                                          size_t count, TokenType final,
                                          uint8_t final_token_width) {
  remove_block(s);
  s->blocks_to_close = s->blocks_to_close + count - 1;
  lexer->result_symbol = BLOCK_CLOSE;
  s->delayed_token = final;
  s->delayed_token_width = final_token_width;
}

Now we can finally try to close divs:

:::::
:::
:::::::
Divception
:::

$ tree-sitter parse example-file
(document [0, 0] - [6, 0]
  (div [0, 0] - [6, 0]
    (div_marker [0, 0] - [0, 5])
    (div [1, 0] - [4, 3]
      (div_marker [1, 0] - [1, 3])
      (div [2, 0] - [4, 0]
        (div_marker [2, 0] - [2, 7])
        (paragraph [3, 0] - [4, 0]))
      (div_marker [4, 0] - [4, 3]))))

We can see that it parses without error, the last marker closes the second div correctly, and the last marker captures the final :::.

While I’m jumping to a working implementation directly in this post, when I first did this that was of course not the case. I found the -d argument useful to see what characters are consumed and what token is output in each step.

Here’s a part of the output (when scanning the final :::), with some comments to point out some interesting things:

$ tree-sitter parse example-file -d
...
process version:0, version_count:1, state:34, row:4, col:0
lex_external state:4, row:4, column:0
  consume character:':'                         // Scan `:::`
  consume character:':'
  consume character:':'
lexed_lookahead sym:_close_paragraph, size:0    // Output _close_paragraph
reduce sym:paragraph_repeat1, child_count:2
shift state:17
process version:0, version_count:1, state:17, row:4, col:0
lex_external state:3, row:4, column:0           // Still on first `:`
  consume character:':'                         // Scan `:::` again
  consume character:':'
  consume character:':'
lexed_lookahead sym:_block_close, size:0        // Close div with _block_close
reduce sym:paragraph, child_count:2
shift state:12
process version:0, version_count:1, state:12, row:4, col:0
lex_external state:5, row:4, column:0           // Still on first `:`
lexed_lookahead sym:_block_close, size:0        // Close second div with _block_close
reduce sym:div, child_count:4
shift state:12
process version:0, version_count:1, state:12, row:4, col:0
lex_external state:5, row:4, column:0           // Still on first `:`
  consume character:':'                         // Consume `:::`
  consume character:':'
  consume character:':'
lexed_lookahead sym:div_marker, size:3          // div_marker is size 3, marks `:::`
shift state:23

While the output seems confusing, when you know what to look for it’s very useful. I’ve found that a deliberate process, where I look at a single character at a time, helps me get through the problems I’ve encountered so far.

Syntax highlighting

Syntax highlighting is made using queries from the highlights.scm file. It’s common to have it placed in the src directory in the same repository as the grammar, but it’s not required.

Here’s an example src/highlights.scm file that highlights the different elements of our markup:

(div_marker) @punctuation.delimiter
(code_block_marker) @punctuation.delimiter

(emphasis "_" @punctuation.delimiter) @markup.italic
(language) @tag.attribute

(code_block) @markup.raw
(paragraph) @markup

What colors to choose is a bit arbitrary, these works well enough I suppose.

See the documentation for more details on how the queries and highlighting works.

Language injection

One big question I had when starting writing my grammar was how to mix multiple parsers in the same document, to for example highlight code blocks using the specified language:

```gleam
let x = 2;
```

Turns out, this is quite straightforward.

With the initial grammar, the code block parses into:

(code_block
  (code_block_marker)
  (language)
  (code)
  (code_block_marker)))

Which we’ll use in src/injections.scm to specify that we want to parse (code) using the grammar specified in (language):

(code_block
  (language) @injection.language
  (code) @injection.content)

When we’ll embed the grammar into a program with highlighting support, it will delegate the text inside the code block to the injected language.

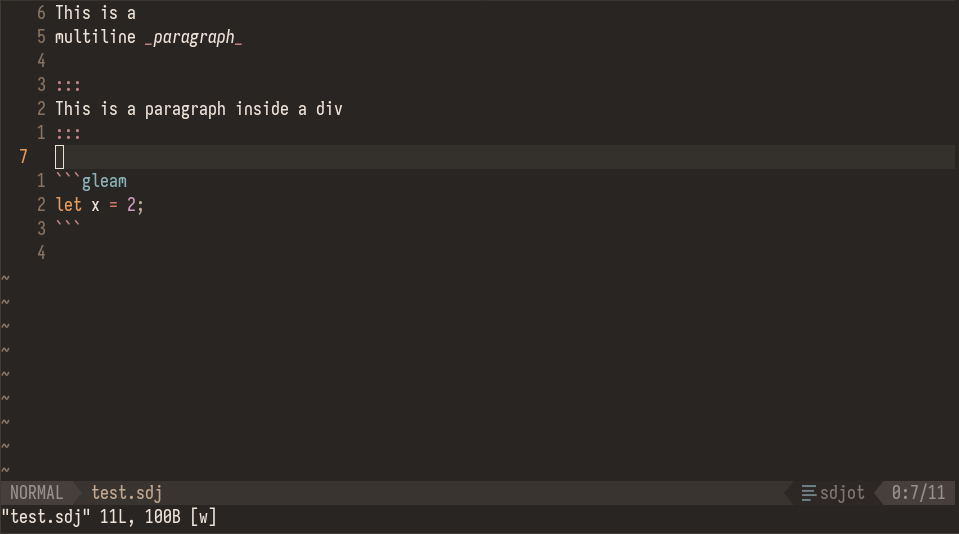

Using our grammar with Neovim

I typically install Tree-sitter grammars in Neovim using :TSInstall provided by nvim-treesitter. But you can install local Tree-sitter grammars as well:

local parser_config = require("nvim-treesitter.parsers").get_parser_configs()
parser_config.sdjot = {
    install_info = {
        -- Change this url to your grammar
        url = "~/code/tree-sitter-sdjot",
        -- If you use an external scanner it needs to be included here
        files = { "src/parser.c", "src/scanner.c" },
        generate_reqires_npm = false,
        requires_generate_from_grammar = false,
    },
    -- The filetype you want it registered as
    filetype = "sdjot",
}

Just make sure you have a "tree-sitter" section in the grammar’s package.json:

"tree-sitter": [
  {
    "scope": "source.sdjot",
    "file-types": [
      "sdj"
    ],
    "injection-regex": "sdjot",
    "highlights": [
      "queries/highlights.scm"
    ]
  }
],

With this you can do :TSInstall sjdot and :TSUpdate sdjot when you make changes.

:TSInstall doesn’t install queries automatically though. What I did was symlink the queries directory into Neovims config directory:

ln -s ~/code/tree-sitter-sdjot/queries ~/.config/nvim/queries/sdjot

:TSPlaygroundToggle is very useful for debugging the grammar, and :Inspect shows you the highlight groups under your cursor. It might be good to check out :help treesitter-highlight-groups if you want to play with your theme, as the theme needs to support the highlight groups we use for coloring to appear.

You also need to have the Tree-sitter grammar for the injected language installed, if you want to highlight the contents of code blocks.

Jumping and selecting with textobjects

I mentioned nvim-treesitter-textobjects as a good example of why Tree-sitter is about more than syntax highlighting.

To make use of our grammar we can add some capture groups to src/textobjects.scm. For example we can register our code blocks as “functions”:

(code_block (code) @function.inner) @function.outer

The objects are arbitrary, but @function is one of the standard objects so I guess it might make sense.

With the symlink ready, you need to register keymaps with nvim-treesitter-textobjects and you’re good to go. I have it setup so I can jump between @function.outer with [f and ]f, and selections with af and if.

This means that with the above textobject definition I can for example jump to the next code block with ]f and then remove all the code inside with cif to end up in insert mode, ready to replace it with some new code.

Although this example is a bit arbitrary, this general functionality is extremely useful for programming languages. For a markup language like Djot, jumping between headings might be a more relevant use-case.

Embedding the grammar with Rust

One of the selling points of Tree-sitter is that you should be able to embed it in any application. Such as this blog!

I’ve been wanting to add Tree-sitter powered highlighting to my blog for a while, and now I have an excuse to do just that.

This blog is a static site generator written in Rust, and tree-sitter-highlight looks like a suitable library to try. Let’s add it to our Cargo.toml:

[dependencies]
tree-sitter-highlight = "^0.20.0"
tree-sitter-sdjot = { git = "https://github.com/treeman/tree-sitter-sdjot.git" }

I use a slightly older version because some other grammars I want depend on the older version, and it’s a big pain but they all need to use a matching version. Bleh.

According to the docs we first need to setup a HighlightConfiguration. I used lazy_static! to create a global map with configurations to be used by any parallel rendering on the blog. It’s not the most beautiful code I’ve written, but it gets the job done:

// All highlights needs to be listed explicitly.
static HIGHLIGHT_NAMES: &[&str] = &[
    // I have +100 entries here, this is for sdjot.
   "markup",
   "markup.italic",
   "markup.raw",
   "punctuation.delimiter",
   "tag.attribute",
];

lazy_static! {
    static ref CONFIGS: HashMap<String, HighlightConfiguration> = init_configurations();
}

fn init_configurations() -> HashMap<String, HighlightConfiguration> {
    [
        // I have more languages here
        (
            "sdjot",
            HighlightConfiguration::new(
                tree_sitter_sdjot::language(),
                tree_sitter_sdjot::HIGHLIGHTS_QUERY,
                tree_sitter_sdjot::INJECTIONS_QUERY,
                "",
            )
            .unwrap(),
        ),
    ]
    .into_iter()
    .map(|(name, mut config)| {
        config.configure(&HIGHLIGHT_NAMES);
        (name.to_string(), config)
    })
    .collect()
}

Notice how all highlight names we’re interested in have to be explicitly specified. This is a big pain, especially if you’re going to include many larger grammars.

The names can be filtered for with ripgrep with something like this:

rg "@[\w.]+" -INo --trim highlights.scm | sort | uniq

I already have syntax highlighting via syntect, so I wrap the highlighters in their own types:

enum HighlighterType<'a> {
    Syntect(SyntectHighlighter<'a>),
    Treesitter(TreesitterHighlighter<'a>),
}

pub struct TreesitterHighlighter<'a> {
    config: &'a HighlightConfiguration,
}

impl<'a> TreesitterHighlighter<'a> {
    pub fn find(lang_id: &str) -> Option<Self> {
        CONFIGS.get(lang_id).map(|config| Self { config })
    }
}

The interesting part is of course the highlight method, that takes a string of code and applies syntax highlighting on it:

impl<'a> TreesitterHighlighter<'a> {
    pub fn highlight(&self, code: &str) -> Result<String> {
        let mut highlighter = Highlighter::new();

        let highlights = highlighter.highlight(self.config, code.as_bytes(), None, |lang| {
            // This callback handles language injection
            // and should return a `HighlightConfiguration`.
            let res = CONFIGS.get(lang);
            if !res.is_some() {
                warn!("Couldn't find treesitter grammar for `{lang}` to inject");
            }
            res
        })?;

        let mut renderer = HtmlRenderer::new();
        renderer.render(highlights, code.as_bytes(), &|attr| {
            // This should return a `&'a [u8]` with the same lifetime as `code`.
        })?;
        let res = renderer.lines().join("");
        Ok(res)
    }
}

I want to point out the API in HtmlRenderer, where we stumble upon a very annoying problem: what should we return from the callback, and how should we do that?

What the callback does is inject the return value into the span element, like this:

<span CALLBACK_RESULT >highlight</span>

So we’d like to return something like "class=\"markup italic\"", using attr which is only a usize into HIGHLIGHT_NAMES:

renderer.render(highlights, code.as_bytes(), &|attr| {
    format!(r#"class="{}""#, HIGHLIGHT_NAMES[attr.0].replace(".", " ")).as_bytes()
})?;

Because we return a slice of bytes into a string that’s created inside the callback, of course the Rust compiler will be mad at us:

error[E0515]: cannot return value referencing temporary value
  --> src/markup/syntax_highlight/treesitter_highlighter.rs:33:13
   |
33 |             format!(r#"class="{}""#, HIGHLIGHT_NAMES[attr.0].replace(".", " ")).as_bytes()
   |             -------------------------------------------------------------------^^^^^^^^^^^
   |             |
   |             returns a value referencing data owned by the current function
   |             temporary value created here

How to dynamically create a string from inside the callback… That outlives the callback itself?

Not easily I tell you.

It would be so much easier if the callback would return a Cow<str> or something. I wonder how the designers of the API expects it to be used? This surely isn’t a very unique requirement, to wrap the attribute in a class?

Oh well. One way to solve this is to store the generated strings in a container that outlives the callback, and reference that (yeah it’s a Fn callback, but there are hacky ways around that). Or you could, you know, write your own HtmlRenderer.

Or you could pre-generate the classes and reference them:

lazy_static! {
    static ref CLASSES: Vec<String> = HIGHLIGHT_NAMES
        .iter()
        .map(|name| format!(r#"class="{}""#, name.replace(".", " ")))
        .collect();
}

renderer.render(highlights, code.as_bytes(), &|attr| {
    CLASSES[attr.0].as_bytes()
})?;

This should be the fastest option and is the one I currently use… But speed isn’t a bottleneck here and I’d rather just return a String with format! and be done with it.

With this I’ve integrated Tree-sitter based syntax highlighting into my blog!

```
With great powers comes great responsibility
```

I could start moving the various languages over from Syntect to Tree-sitter… But I won’t.

There are some issues:

1. You need a compatible version of tree-sitter for all grammars.

   The more grammars you add the more painful the upgrade path becomes.

2. Syntect gives better highlighting for some languages (like Rust and C).

   Neovim has their own highlighter implementation and has made tweaks to certain grammars and gets much nicer highlighting than I got out of the box.

   Integrating that code into my site generator is probably possible, but not a rabbit hole I want to jump into right now.

3. The highlighter library feels a bit immature.

   A newer version broke the highlight groups I got from some grammars and I don’t see any support for how to add a language specific class to span for injected languages.

Because of these issues I’ll evaluate what highlighter to use on a case-by-case basis, with Syntect as the default choice.
